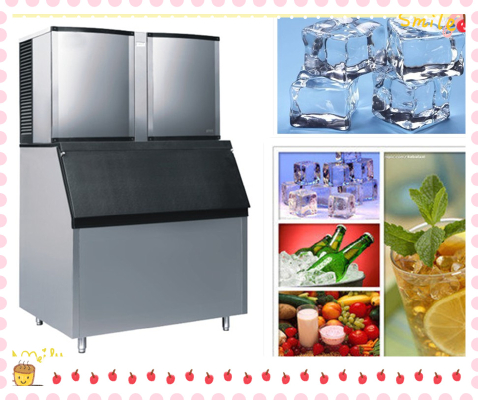

1000kg per day Cube Ice making machine

1000kg per day Cube Ice making machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 800 Sets per Month
  • Port: Ningbo,China
  • Payment Terms: T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2005-02-02
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Zhejiang, China (Mainland)
  • Brand Name:  xhc
  • Model Number:  XICA-2208

I. Main features of Cube ice making machine :



1. Ice form small, the equipment special deigned for the laboratory, hotel, restaurant, coffee shop, sell the ice shop, beverage plants design.



2. Stainless steel shell, beautiful and practical.



3. The high fluorine-free compressor, economy energy saving, make the cooling performance more hasten is perfect.



4. The control system adopts microcomputer board, process monitoring, control the reliable, smooth operation, and perfect Protection.



5. the high heat exchanger and thin profile and air, increase effective volume, come loose hot effect more beautiful, reduce the operating cost.



6. Overload, water and ice full automatic detection and protection.



7. The double helix extrusion ice way, ice compact structure, small volume, reduce laboratory empty take up between.



8. Introduce the ice machine production line from abroad, reliable operation, product quality can be guaranteed





II. Technology parameter of Cube ice making machine :



ModelPower supplyIce shapeMax ice outputStorage capacity Overall Size(mm)
                              Vertical ice maker (Air cooled)  Single phase -220V/50HZ
XICA-105220V/360wsquare50kg18kg520*560*780mm
XICA-165220v/490wsquare75kg38kg700*660*920mm
XICA-215220v/600wsquare105kg38kg700*660*920mm
                             Separated ice maker (water cooled/Air cooled)
XICA-320220V/780WSquare140kg80kg560*840*1420mm
XICA-430220V/820WSquare195kg100kg560*840*1530mm
XICA-550220V/920WSquare230kg180kg760*840*1530mm
XICA-750220V/1280WSquare320kg180kg760*840*1530mm
XICA-1008220V/1560WSquare450kg270kg760*840*1760mm
XICA/W-1408220V/2480WSquare660kg450kg1220*960*1830mm
XICA/W-1908380V/3580WSquare910kg450kg1220*960*1830mm
XICA/W-2208380V/4680WSquare1000kg500kg1222*850*1930mm
Remark :



1.Inlet water 16C,ambient temperature 35C.


2.Cube ice size :22*22*22mm 29*29*22mm

3.Voltage :3Phase 380V 50HZ ,3Phase 220V 60HZ .





 Note :

We also can design according to the customers request .





 III.Main refrigeration components configuration:



Items

Remark

Compressor

XICA-105—XICA-750 :     Aspera ,Slovakia


XICA/W-1008—XICW-2208:   Tecumseh ,France

Condenser

2.2mm space fin radiator (Air cooled)/

Copper tube coils (water cooled)

Evaporator

Upright type nickel copper evaporation plate

Expanding valve

DANFOSS , Denmark

Computer control

XHC

Filter drier

Danfoss made in Mexico

Solenoid valve

Saginomiya made in Japan

Pump

Morrill made in Hangzhou

Condensing fan

Ebmpapst made in Shanghai

Refrigerant

Dupont made in USA.

Ice cube pool

Polyurethane foam overall




  • Place of Origin:  Zhejiang, China (Mainland)
  • Brand Name:  xhc
  • Model Number:  XICA-2208
